Glass Lined Reactors: Used-De Dietrich 2500 gallon Glass Lined Reactor GlasLock Agitator Drive

SKIP PAN: New 5'x8'x24" material handling skip pan
New 5'x8'x24" material handling skip pans

Stainless Steel Tanks:Used 750 gallon 304 stainless steel verticat conical bottom tank (fermenter tank)
Used 750 gallon 304 stainless steel verticat conical bottom tank (fermenter tank) Distillery

Stainless Steel Tanks:Used Cherry Burrell 130 gallon vertical stainless steel cone bottom tank
Used Cherry Burrell 130 gallon vertical stainless steel cone bottom tank

Stainless Steel Tanks: Used 110 gallon vertical stainless steel cone bottom tank
Used 110 gallon vertical stainless steel cone bottom tank

Stainless Steel Tanks: Used Cherry Burrell 1500 gallon stainless steel processor coil jacket
Used Cherry Burrell 1500 gallon stainless steel processor


	Request For Information Shipping Information

Used-DeDietrich 2500 gallon Glass Lined Reactor GlasLock Agitator Drive

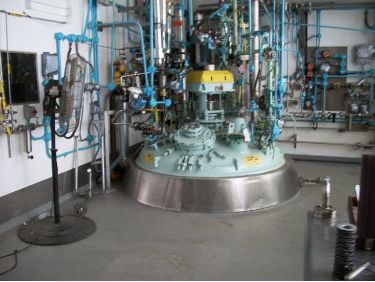

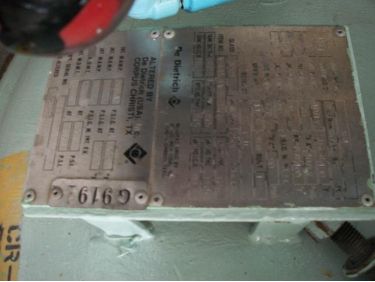

Used-De Dietrich 2500 gallon glass lined reactor. 84" diameter X 88" high straight side. Internal rated 40/Fv @ 400 degrees F. Conventional jacket rated 90/FV @ 400 degrees F. Welded dished heads. Top fittings: 18" manway, (5) 3", (3) 4", (2) 8", (1) 10". (2) 3" bottom outlets. Equipped with GlasLock agitator driven thru a De Dietrich series 60 drive (125 RPM), powered by a 15HP 3/60/230-460 Volt XP Class 1 Div 1 1800 RPM motor. Has beavertail baffle with RTD. MFG # 1423. National Board Number 384. Built 1993. Plug and patch free. Can be lug or leg mounted.

Order Information

Item Number
MTF02066-0019

Price

Quantity:

All Prices in US Dollars
