Stainless Steel Tank: Mueller 200 gallon jacketed stainless steel tank

SKIP PAN: New 5'x8'x24" material handling skip pan
New 5'x8'x24" material handling skip pans

Stainless Steel Tanks:Used 750 gallon 304 stainless steel verticat conical bottom tank (fermenter tank)
Used 750 gallon 304 stainless steel verticat conical bottom tank (fermenter tank) Distillery

Stainless Steel Tanks:Used Cherry Burrell 130 gallon vertical stainless steel cone bottom tank
Used Cherry Burrell 130 gallon vertical stainless steel cone bottom tank

Stainless Steel Tanks: Used 110 gallon vertical stainless steel cone bottom tank
Used 110 gallon vertical stainless steel cone bottom tank

Stainless Steel Tanks: Used Cherry Burrell 1500 gallon stainless steel processor coil jacket
Used Cherry Burrell 1500 gallon stainless steel processor


	Request For Information Shipping Information

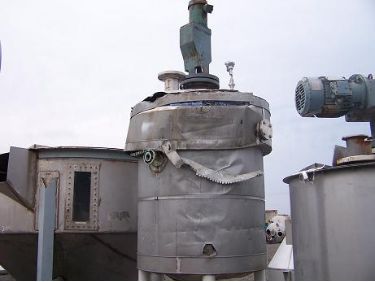

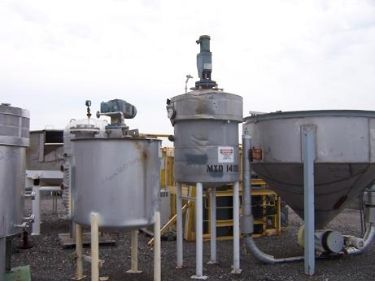

Mueller 200 gallon vertical jacketed stainless steel tank

Used Mueller 200 gallon vertical jacketed stainless steel tank. 38" diameter X 48" high straight side. Internal rated 15 PSI @ 100 degrees F. Jacket rated 80 PSI @ 100 degrees F. NB# 13840. S/N P-24854-18. Built 1988. Top Fittings: (2) 1 1/2", (1) 4", and (1) 3/4". 3" center bottom drain. Equipped with Philadelphia Model PMV-01-PTS drive. Input RPM 1800, output RPM 68, ratio 25.6:1. Powered by a .5HP motor. Insulated and covered by aluminum sheathing. Mounted on Legs.

Order Information

Item Number
MTF02050-0007

Price

Quantity:

All Prices in US Dollars
