Used Central Fabricators 500 gallon vertical stainless steel dimple jacketed conical bottom tank.

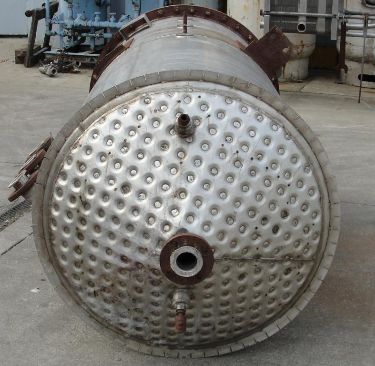

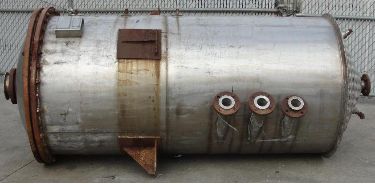

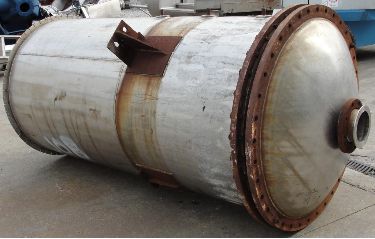

Used Central Fabricators Inc. 500 gallon vertical stainless steel tank with dimple jacketed conical bottom. National Board # 650. This tank has a dome top and a dimple jacketed conical bottom. The jacket has a 90 psi @ 330° F Working Pressure. The diameter is 40", the overall height is 108", the straight side height is 84" the dome top is 10" and the conical bottom is 12". The top has a 6.25" flange inlet. The side has (3) 2.5" flange inlets. The bottom has a 2.5" flange center discharge.
