Shell and Tube Heat Exchanger: Used-Atlas Industrial 21 sq. ft. Shell and Tube Hastelloy C-276

SKIP PAN: New 5'x8'x24" material handling skip pan
New 5'x8'x24" material handling skip pans

Stainless Steel Tanks:Used 750 gallon 304 stainless steel verticat conical bottom tank (fermenter tank)
Used 750 gallon 304 stainless steel verticat conical bottom tank (fermenter tank) Distillery

Stainless Steel Tanks:Used Cherry Burrell 130 gallon vertical stainless steel cone bottom tank
Used Cherry Burrell 130 gallon vertical stainless steel cone bottom tank

Stainless Steel Tanks: Used 110 gallon vertical stainless steel cone bottom tank
Used 110 gallon vertical stainless steel cone bottom tank

Stainless Steel Tanks: Used Cherry Burrell 1500 gallon stainless steel processor coil jacket
Used Cherry Burrell 1500 gallon stainless steel processor


	Request For Information Shipping Information

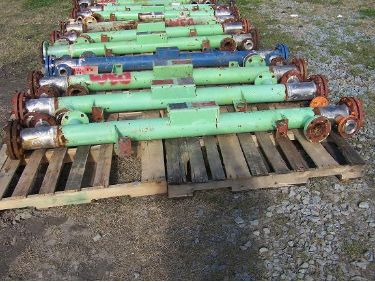

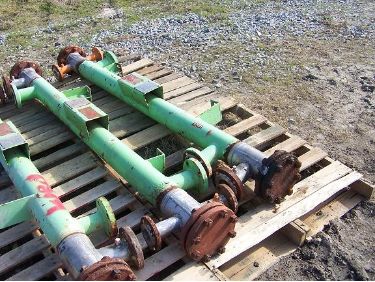

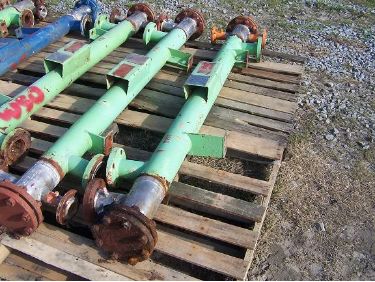

Used-Atlas Industrial approximately 21 sq. ft. horizontal shell and tube heat exchanger.

Used-Atlas Industrial approximately 21 sq. ft. horizontal shell and tube heat exchanger. 5 9/16" diameter X 7'-9" overall length. Carbon steel shell rated 100 PSI @ -20 to 200 degrees F. Hastelloy C-276 tubes rated 75/FV @ -20 to 300 degrees F. Hastelloy welded tubsheets are 5.2945" diameter X 3/4" thick. Contains (18) 3/4"OD tubes made of 18 GA hastelloy. NB# 6803. Serial # 8151. Built 1992. Equipped with (12) 1/8" carbon steel baffles. Mounted on carbon steel feet giving 5 degree incline.

Order Information

Item Number
MTF02002-0802

Price

Quantity:

All Prices in US Dollars
